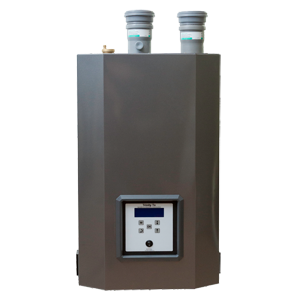

Trinity TX Gas Boilers
The evolution of high efficiency condensing boilers
- Efficiency Up to 95% AFUE
- Combi Application The 151 and 200 are available in a combi version' whereby the boiler can provide both space heating and domestic hot water. The boiler gives full capacity in heating and DHW modes.
- Engineering Elegance The Tx has been engineered to make installation' setup and service easy. Service ports' test receptacles' easy access' and quick release components make the Tx unmatched in the industry.
- Fully Modulating with 8:1 turndown
- Advanced Outdoor Reset Control with warm weather shutdown mode
- High Efficiency Stainless Steel Heat exchanger for durability
| MODEL | Input MBtuH | Output MBtuH | AFUE | Dimensions HxWxD | Water Content Gal. | Weight Lbs. |
|---|---|---|---|---|---|---|
| TX51 | 57.0 | 52.0 | 94.0 | 30.75x18x16 | 0.50 | 77 |
| TX81 | 82.0 | 75.0 | 94.0 | 30.75x18x16 | 0.60 | 79 |
| TX101 | 101.0 | 92.0 | 94.0 | 30.75x18x16 | 0.70 | 86 |
| TX151 | 151.0 | 138.0 | 94.0 | 30.75x18x16 | 0.80 | 87 |
| TX151C | 151.0 | 74.0 | 95.0 | 30.75x18x16 | 1.00 | 109 |
| TX200 | 199.0 | 183.0 | 95.0 | 30.75x18x17.4 | 1.20 | 98 |
| TX200C | 199.0 | 111.0 | 95.0 | 30.75x18x17.4 | 1.40 | 120 |
Warranty Information
- All Parts for 60 months -
- Heat Exchanger for 120 months -
