High-Efficiency Comfort Systems
Reliable & Efficient Heating & A/C Systems

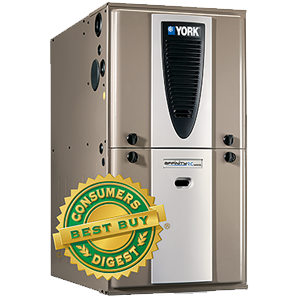

YP9C 98% Modulating Variable Speed Gas Furnaces
There’s no place like home. Or to be exact' there’s no place like your home' the one spot that reflects your style and your personality. So it makes sense to select your furnace just as you would any other appliance' by demanding good looks and innovative design. It is possible with York Affinity Series Furnaces - engineered and designed from the ground up to give you more comfort and options than ever before.
- Exclusive ClimaTrak technology on variable-speed models can match your region’s unique climate and conditions to improve comfort.
- 98% AFUE efficiency lowers fuel cost and consumption.
- Modulating design continuously adjusts heating level by .65% increments (100 step increments) to match the degree of comfort you need precisely.
- Compact 33-inch height and standard cabinet widths fit more comfort into less space.
- Variable speed blower provides quiet' efficient circulation.
| MODEL | Configuration | Input MBtuH | Output MBtuH | AFUE | CFM | Dimensions HxWxD | Weight Lbs. |
|---|---|---|---|---|---|---|---|
| YP9C060B12MP* | Up, Hor., Down | 60.0 | 58.0 | 97.5 | 1200 | 33x17.5x30.25 | 113 |
| YP9C080B12MP* | Up, Hor., Down | 80.0 | 77.0 | 97.5 | 1200 | 33x17.5x30.25 | 119 |
| YP9C080C16MP* | Up, Hor., Down | 80.0 | 78.0 | 97.7 | 1600 | 33x21x30.25 | 134 |
| YP9C100C16MP* | Up, Hor., Down | 100.0 | 97.0 | 97.7 | 1600 | 33x21x30.25 | 140 |
| YP9C100C20MP* | Up, Hor., Down | 100.0 | 97.0 | 97.7 | 2000 | 33x21x30.25 | 143 |
| YP9C120D20MP* | Up, Hor., Down | 120.0 | 116.0 | 98.0 | 2000 | 33x24.5x30.25 | 152 |
Warranty Information
- All Parts for 120 months - Limited 10 Year Parts With Prompt Online Registration
- Heat Exchanger - Limited Lifetime With Prompt Online Registration
Available Documents
- View Document (Consumer Literature, Customer Information)
- View Document (Specification Sheet, Technical Information)
- View Document (Parts List, Service Information)
- View Document (Consumer Literature, Color)
